介紹
誰不想知道虛擬機是怎樣工作的?不過,比起自己寫一個虛擬機,更好的辦法是使用大公司的產品。在這篇文章中,我將介紹如何在你的程序中使用V8——谷歌瀏覽器(Chrome)所使用的開源JavaScript引擎。
背景
這里的代碼使用V8作為嵌入庫來執行JavaScript代碼。要取得庫源碼和其它信息,可以瀏覽V8開發者頁面。想有效地應用V8,你需要了解C/C++和JavaScript。
使用
我們來看看演示中有哪些東西:
· 如何使用V8庫API來執行JavaScript腳本。
· 如何存取腳本中的整數和字符串。
· 如何建立可被腳本調用的自定義函數。
· 如何建立可被腳本調用的自定義類。
首先,我們一起了解一下怎樣初始化V8。這是嵌入V8引擎的簡單例子:
1. #include <v8.h>
2. using namespace v8;
3. int main(int argc, char* argv[]) {
4. // Create a stack-allocated handle scope.
5. HandleScope handle_scope;
6. // Create a new context.
7. Handle<Context> context = Context::New();
8. // Enter the created context for compiling and
9. // running the hello world script.
10. Context::Scope context_scope(context);
11. // Create a string containing the JavaScript source code.
12. Handle<String> source = String::New("'Hello' + ', World!'");
13. // Compile the source code.
14. Handle<Script> script = Script::Compile(source);
15. // Run the script to get the result.
16. Handle<Value> result = script->Run();
17. // Convert the result to an ASCII string and print it.
18. String::AsciiValue ascii(result);
19. printf("%s ", *ascii);
20. return 0;
21. }
好了,不過這還不能說明怎樣讓我們控制腳本中的變量和函數。
全局模型(The Global Template)
首先,我們需要一個全局模型來掌控我們所做的修改:
1. v8::Handle<v8::ObjectTemplate> global = v8::ObjectTemplate::New();
這里建立了一個新的全局模型來管理我們的上下文(context)和定制。在V8里,每個上下文是分開的,它們有自己的全局模型。一個上下文就是一個獨立的執行環境,相互之間沒有關聯,JavaScript運行于其中一個實例之中。
自定義函數
接下來,我們加入一個名為"plus"的自定義函數:
1. // plus function implementation - Add two numbers
2. v8::Handle<v8::Value> Plus(const v8::Arguments& args)
3. {
4. unsigned int A = args[0]->Uint32Value();
5. unsigned int B = args[1]->Uint32Value();
6. return v8_uint32(A + B);
7. }
8. //...
9. //associates plus on script to the Plus function
10. global->Set(v8::String::New("plus"), v8::FunctionTemplate::New(Plus));
自定義函數必須以const v8::Arguments&作為參數并返回v8::Handle<v8::Value>。我們把這個函數加入到模型中,關聯名稱"plus"到回調Plus?,F在,在腳本中每次調用"plus",我們的Plus函數就會被調用。這個函數只是返回兩個參數的和。
現在我們可以在JavaScript里使用這個自定義函數了:
plus(120,44);
在腳本里也可以得到函數的返回值:
x = plus(1,2);
if( x == 3){
// do something important here!
}
訪問器(Accessor)——存取腳本中的變量
現在,我們可以建立函數了...不過如果我們可以在腳本外定義一些東西豈不是更酷?Let's do it! V8里有個東東稱為存取器(Accessor),使用它,我們可以關聯一個名稱到一對Get/Set函數上,V8會用它來存取腳本中的變量。
1. global->SetAccessor(v8::String::New("x"), XGetter, XSetter);
這行代碼關聯名稱"x"到XGetter和XSetter函數。這樣在腳本中每次讀取到"x"變量時都會調用XGetter,每次更新"x"變量時會調用XSetter。下面是這兩個函數的代碼:
1. //the x variable!
2. int x;
3. //get the value of x variable inside javascript
4. static v8::Handle<v8::Value> XGetter( v8::Local<v8::String> name,
5. const v8::AccessorInfo& info) {
6. return v8::Number::New(x);
7. }
8. //set the value of x variable inside javascript
9. static void XSetter( v8::Local<v8::String> name,
10. v8::Local<v8::Value> value, const v8::AccessorInfo& info) {
11. x = value->Int32Value();
12. }
XGetter里我們把"x"轉換成V8喜歡的數值類型。XSetter里,我們把傳入的參數轉換成整數,Int32Value是基本類型轉換函數的一員,還有NumberValue對應double、BooleanValue對應bool,等。
現在,我們可以為字符串做相同的操作:
1. //the username accessible on c++ and inside the script
2. char username[1024];
3. //get the value of username variable inside javascript
4. v8::Handle<v8::Value> userGetter(v8::Local<v8::String> name,
5. const v8::AccessorInfo& info) {
6. return v8::String::New((char*)&username,strlen((char*)&username));
7. }
8. //set the value of username variable inside javascript
9. void userSetter(v8::Local<v8::String> name, v8::Local<v8::Value> value,
10. const v8::AccessorInfo& info) {
11. v8::Local<v8::String> s = value->ToString();
12. s->WriteAscii((char*)&username);
13. }
對于字符串,有一點點不同,"userGetter"和XGetter做的一樣,不過userSetter要先用ToString方法取得內部字符串,然后用WriteAscii函數把內容寫到我們指定的內存中。現在,加入存取器:
1. //create accessor for string username
2. global->SetAccessor(v8::String::New("user"),userGetter,userSetter);
打印輸出
"print"函數是另一個自定義函數,它通過"printf"輸出所有的參數內容。和之前的"plus"函數一樣,我們要在全局模型中注冊這個函數:
1. //associates print on script to the Print function
2. global->Set(v8::String::New("print"), v8::FunctionTemplate::New(Print));
實現"print"函數
1. // The callback that is invoked by v8 whenever the JavaScript 'print'
2. // function is called. Prints its arguments on stdout separated by
3. // spaces and ending with a newline.
4. v8::Handle<v8::Value> Print(const v8::Arguments& args) {
5. bool first = true;
6. for (int i = 0; i < args.Length(); i++)
7. {
8. v8::HandleScope handle_scope;
9. if (first)
10. {
11. first = false;
12. }
13. else
14. {
15. printf(" ");
16. }
17. //convert the args[i] type to normal char* string
18. v8::String::AsciiValue str(args[i]);
19. printf("%s", *str);
20. }
21. printf(" ");
22. //returning Undefined is the same as returning void...
23. return v8::Undefined();
24. }
這里,為每個參數都構建了v8::String::AsciiValue對象:數據的char*表示。通過它,我們就可以把所有類型都轉換成字符串并打印出來。

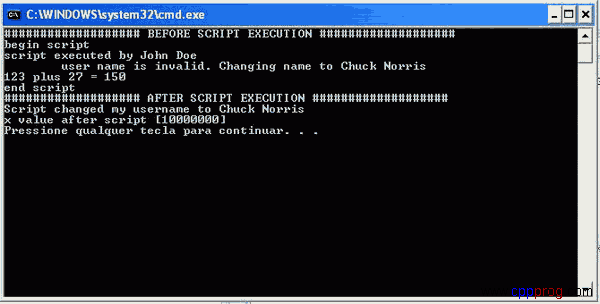

JavaScript演示
在演示程序里,我們有一個簡單的JavaScript腳本,調用了迄今為止我們建立的所有東西:
print("begin script");
print(script executed by + user);
if ( user == "John Doe"){
print("\tuser name is invalid. Changing name to Chuck Norris");
user = "Chuck Norris";
}
print("123 plus 27 = " + plus(123,27));
x = plus(3456789,6543211);
print("end script");
存取C++對象

為我們的類準備環境
如果用C++把一個類映射到JavaScript中去?放一個演示用的類上來先:
1. //Sample class mapped to v8
2. class Point
3. {
4. public:
5. //constructor
6. Point(int x, int y):x_(x),y_(y){}
7.
8. //internal class functions
9. //just increment x_
10. void Function_A(){++x_; }
11.
12. //increment x_ by the amount
13. void Function_B(int vlr){x_+=vlr;}
14.
15. //variables
16. int x_;
17. };
為了把這個類完全嵌入腳本中,我們需要映射類成員函數和類成員變量。第一步是在我們的上下文中映射一個類模型(class template):
1. Handle<FunctionTemplate> point_templ = FunctionTemplate::New();
2. point_templ->SetClassName(String::New("Point"));
我們建立了一個"函數"模型[FunctionTemplate],但這里應該把它看成類。
然后,我們通過原型模型(Prototype Template)加入內建的類方法:
1. Handle<ObjectTemplate> point_proto = point_templ->PrototypeTemplate();
2. point_proto->Set("method_a", FunctionTemplate::New(PointMethod_A));
3. point_proto->Set("method_b", FunctionTemplate::New(PointMethod_B));
接下來,類有了兩個方法和對應的回調。但它們目前只在原型中,沒有類實例訪問器我們還不能使用它們。
1. Handle<ObjectTemplate> point_inst = point_templ->InstanceTemplate();
2. point_inst->SetInternalFieldCount(1);
SetInternalFieldCount函數為C++類建立一個空間(后面會用到)。
現在,我們有了類實例,加入訪問器以訪問內部變量:
1. point_inst->SetAccessor(String::New("x"), GetPointX, SetPointX);
接著,“土壤”準備好了,開始播種:
1. Point* p = new Point(0, 0);
新對象建立好了,目前只能在C++中使用,要放到腳本里,我們還要下面的代碼:
1. Handle<Function> point_ctor = point_templ->GetFunction();
2. Local<Object> obj = point_ctor->NewInstance();
3. obj->SetInternalField(0, External::New(p));
好了,GetFunction返回一個point構造器(JavaScript方面), 通過它,我們可以用NewInstance生成一個新的實例。然后,用Point對象指針設置我們的內部域(我們前面用SetInternalFieldCount建立的空間),JavaScript可以通過這個指針存取對象。
還少了一步,我們只有類模型和實例,但還缺一個名字來存取它:
1. context->Global()->Set(String::New("point"), obj);

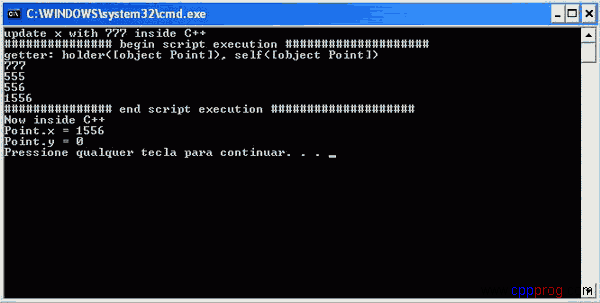

在JavaScript里訪問類方法
最后,我們還要解釋一下怎樣在Point類中訪問Function_A...
讓我們看看PointMethod_A回調:
1. Handle<Value> PointMethod_A(const Arguments& args)
2. {
3. Local<Object> self = args.Holder();
4. Local<External> wrap = Local<External>::Cast(self->GetInternalField(0));
5. void* ptr = wrap->Value();
6. static_cast<Point*>(ptr)->Function_A();
7. return Integer::New(static_cast<Point*>(ptr)->x_);
8. }
和普通訪問器一樣,我們必須處理參數。要訪問我們的類,必須從內部域(第一個)中取得類指針。把內部域映射到"wrap"之后,我們使用它的"value"方法取得類指針。
其它
希望這篇文章對你有所幫助,如果發現文章有誤,請不吝賜教。
Google的V8參考文檔
