            Modify Branding of FreeCAD

            Posted on 2016-05-09 22:18 eryar 閱讀(1470) 評論(2)  編輯 收藏 引用

            Modify Branding of FreeCAD

            eryar@163.com

            This article describes the Branding of FreeCAD. Branding means to start your own application based on FreeCAD. That can be only your own executable or splash screen till a complete reworked program. Based on the flexible architecture of FreeCAD it’s easy to use it as base for your own special purpose program.

            本文主要描述如何修改FreeCAD的Branding,從而使自己能基于FreeCAD靈活的架構快速開發出自己的應用程序。通過修改FreeCAD的Branding甚至啟動畫面,從而使程序看上去更像是自己開發的。

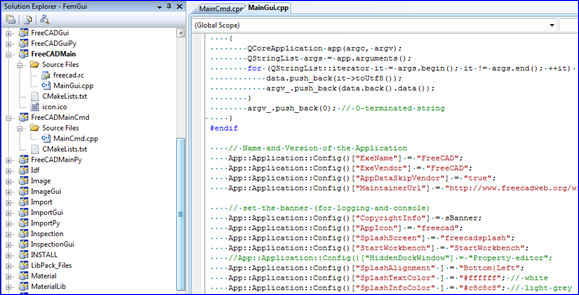

            Branding信息主要在文件MainCmd.cpp和MainGrui.cpp中,這兩個工程生成了FreeCAD可執行文件。

            wps_clip_image-13903

            可以通過修改相關字符串,可以給可執行程序一個自己的名字,或者版本信息等的自定義,還有啟動畫面的自定義。



            int main( int argc, char ** argv )
             {

            // Name and Version of the Application
               App::Application::Config()["ExeName"= "FooApp";
               App::Application::Config()[
            "ExeVersion"= "0.7";


            // set the banner (for loging and console)
               App::Application::Config()["CopyrightInfo"= sBanner;
               App::Application::Config()[
            "AppIcon"= "FooAppIcon";
               App::Application::Config()[
            "SplashScreen"= "FooAppSplasher";
               App::Application::Config()[
            "StartWorkbench"= "Part design";
               App::Application::Config()[
            "HiddenDockWindow"= "Property editor";
               App::Application::Config()[
            "SplashAlignment" ] = "Bottom|Left";
               App::Application::Config()[
            "SplashTextColor" ] = "#000000"// black


            // Inits the Application
               App::Application::Config()["RunMode"= "Gui";
               App::Application::init(argc,argv);

               Gui::BitmapFactory().addXPM(
            "FooAppSplasher", ( const char** ) splash_screen);

               Gui::Application::initApplication();
               Gui::Application::runApplication();
               App::Application::destruct();


            return 0;
             }

            圖片數據通過使用Qt的資源系統來編譯到FreeCAD中去的。所以你需要寫一個.qrc文件,將資源加到這個類似XML的qrc文件中。在程序中使用資源,需要在main()中添加下面一行:

            Q_INIT_RESOURCE(FooApp);

            如果你有XPM格式的圖片,則可以直接使用:

            Gui::BitmapFactory().addXPM("FooAppSplasher", ( const char** ) splash_screen);

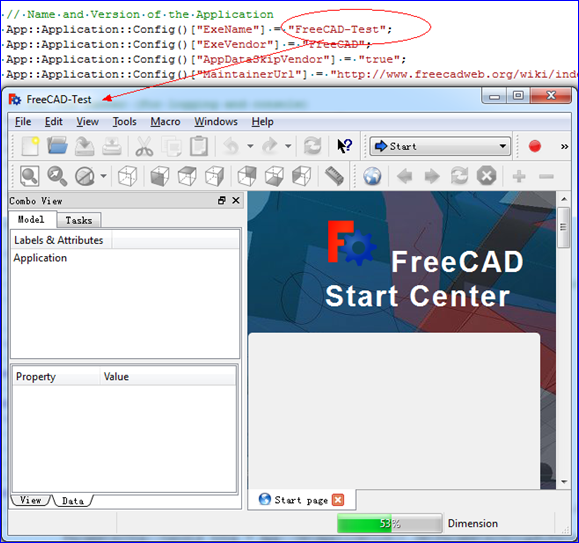

            改后效果如下圖所示:

            wps_clip_image-1054

            Feedback

            # re: Modify Branding of FreeCAD  回復  更多評論

            2016-08-05 13:46 by 啦啦啦
            請教一下, App::Application::Config()["ExeName"] = "FreeCAD中文名";中文字符,會亂碼,這個要怎么解決了?

            # re: Modify Branding of FreeCAD  回復  更多評論

            2016-08-05 19:18 by eryar
            @啦啦啦
            static std::map<std::string,std::string> &Config(void){return mConfig;}
            這個用的是std::string,涉及到編碼問題了。
