1.PipeCAD
IsoAlgo Pipeline End Connection Info
eryar@163.com
Key words: IsoAlgo, End Connection Info, Nozzle

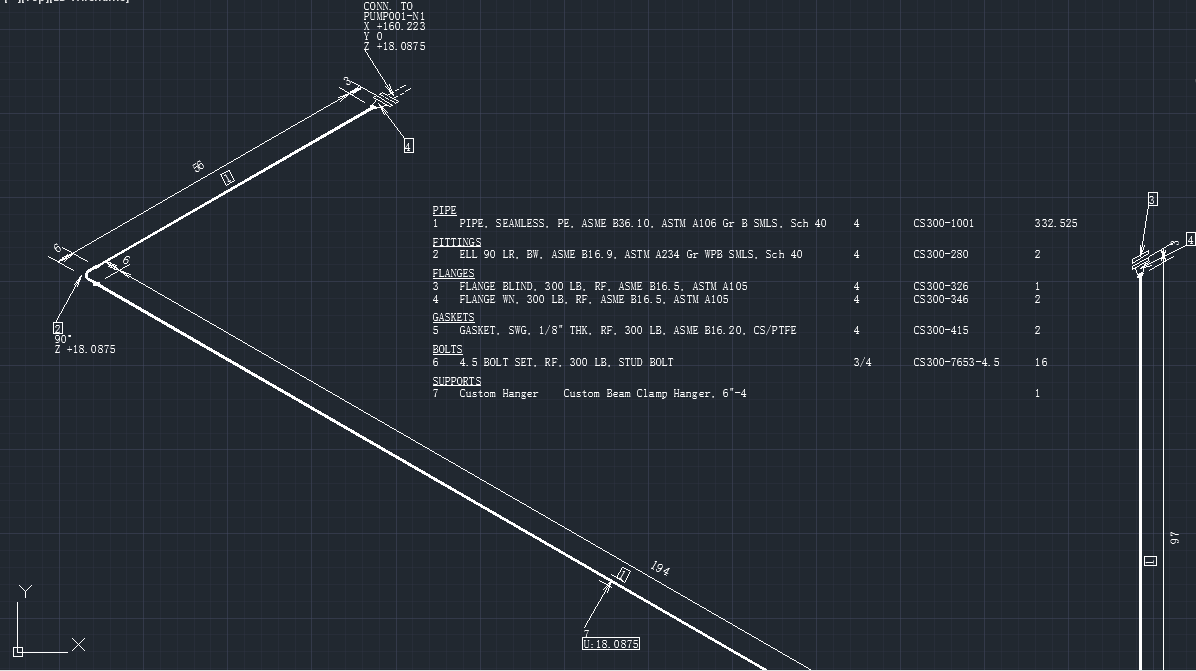

Add Pipeline End Connection info to the IsoAlgo, such as connection info and coordinate:
Figure 1. Pipeline End Connection Info
You can define your own end connection symbol:

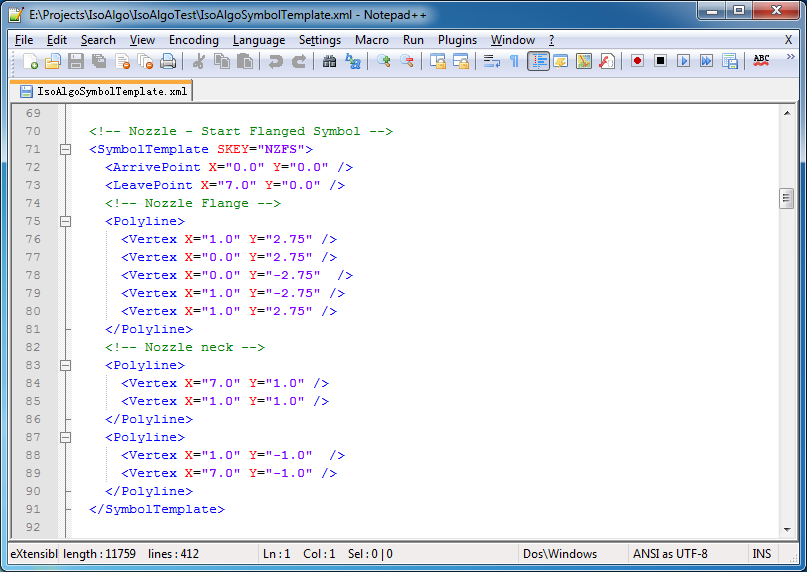

Figure 2. Nozzle Start Flanged Symbol Template
For more information about IsoAlgo, please visit: http://code.google.com/p/isoalgo/
Download trial version of IsoAlgo: http://code.google.com/p/isoalgo/issues/list
Any feedback is welcome, please send email to the author: IsoAlgo@gmail.com.
IsoAlgo User Guide: http://www.shnenglu.com/eryar/archive/2014/04/27/206735.html
