IsoAlgo Export Symbol Template
eryar@163.com
Key Words: IsoAlgo, Symbol Template

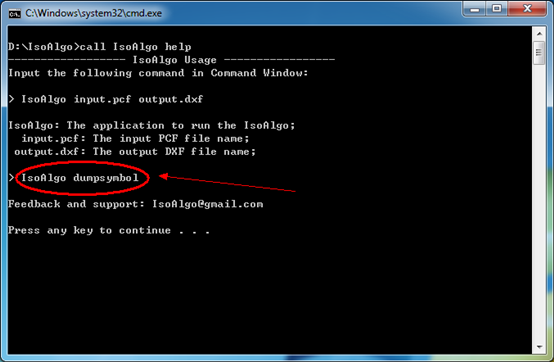

When you want to check the symbol templates that you defined in IsoAlgoSymbolTemplate.xml, you can give the command dumpsymbol to IsoAlgo, the usage is as follows:
Figure 1 Export Symbol Template Command dumpsymbol
After the execution of the dumpsymbol command, IsoAlgo will generate IsoAlgoSymbolLib.dxf which contains all the symbol templates.

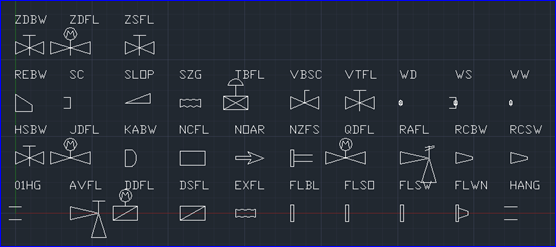

Figure 2 Symbol template in the IsoAlgoSymbolTemplate.xml
From the export symbol template you can make clear that how many symbol templates have beed definied, and It can help you to understand the symbol template definitation method.
IsoAlgo is not finish yet, any feedback or suggestion is welcome, please send email to the author: IsoAlgo@gmail.com.
For more information about IsoAlgo, please visit: http://code.google.com/p/isoalgo/
