本篇是使用DirectInput進行交互（3）的續篇，當時由于身邊沒有游戲操縱桿，所以拖到現在才寫。



使用游戲桿玩游戲

游戲桿是游戲控制的支柱，盡管游戲桿不是游戲惟一可以使用的輸入設備，但它卻是專門為玩游戲而設計的。將游戲桿向左推，游戲人物就會向左走，按下一個按鍵，游戲中的英雄就會揮舞他的劍，還有什么比這更容易的嗎？

游戲桿的形狀和大小千差萬別，商店貨架上的方向盤控制器就是一個游戲桿。如果去過街機游戲廳，就可能玩過允許（或要求）玩家站在很大的踏雪板或騎在小摩托車上來控制屏幕上的角色之類的游戲。別驚奇，這些踏雪板和摩托車甚至都可以看成是游戲桿！

游戲桿是一種軸控制器，按鍵很少。方向盤只有一個用于向左向右轉向的控制軸，它可能還有用于剎車和控制油門的控制軸。連基本的兩鍵游戲桿都有兩個控制軸：一個用于向上和向下，另外一個用于向左和向右。

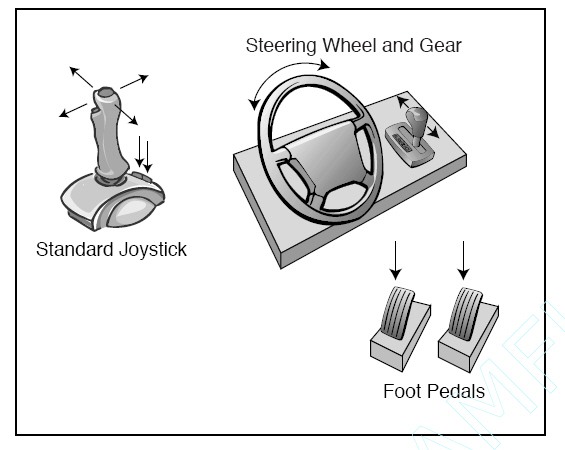

下圖顯示了一些游戲桿，不論外形如何，方向性、旋轉型以及推動型輸入是游戲桿的共同特征。

控制軸只是一個電位器（變量寄存器），它控制傳送給電路的電壓。傳送的最小電壓表示一個軸的范圍（游戲桿能夠被移動的最遠點），而最大電壓表示的是另外一個范圍，所有電壓就介于這兩個范圍之間。

電壓會流向系統，多虧經過windows（或directinput）處理，因此才能使用它。游戲桿按鍵的工作方式幾乎完全相同，就是根據電壓是否施加到按鍵上來發出按鍵是否被按下的信號。

讀入游戲桿數據的方式采用的是絕對值，這些絕對值都是相對于游戲桿中心的值。向左或向右推動游戲桿，都會接收到負值，負值表示遠離游戲桿中心的距離。向下或向右按，就會得到正值。按鍵都是單個標志，這些標志指出了按鍵是否被按下。

各種游戲桿之間惟一較大的差別就是那些帶有數字控制軸的游戲桿了，這些游戲桿就像是一些按鍵的組合。將游戲桿向左推就像按下一個表示向左的按鍵一樣，無論程序員何時查詢游戲桿以得到正在讀取的軸，游戲桿都會返回軸的可能最低值或最高值。



使用DirectInput處理游戲桿

從某種程度上講，游戲桿是最難處理的設備。最難的地方在于游戲桿的設置，要找到連接到系統中的游戲桿設備，必須進行枚舉。在枚舉的過程中，必須決定使用哪個游戲桿，然后再為游戲桿創建COM對象。

如下所示，該函數枚舉并返回第一個枚舉到的游戲桿。

接著來看看枚舉函數的實現：


其中涉及到的結構體DIPROPRANGE定義如下：

Contains information about the range of an object within a device. This structure is used with the DIPROP_RANGE flag set in the IDirectInputDevice8::GetProperty and IDirectInputDevice8::SetProperty methods.

typedef struct DIPROPRANGE {
    DIPROPHEADER diph;
    LONG lMin;
    LONG lMax;
} DIPROPRANGE, *LPDIPROPRANGE;

Members

diph

DIPROPHEADER structure.

lMin

Lower limit of the range. If the range of the device is unrestricted, this value is DIPROPRANGE_NOMIN when the IDirectInputDevice8::GetProperty method returns.

lMax

Upper limit of the range. If the range of the device is unrestricted, this value is DIPROPRANGE_NOMAX when the IDirectInputDevice8::GetProperty method returns.

Remarks

The diph member must be initialized as follows:

Member	Value
dwSize	sizeof(DIPROPRANGE)
dwHeaderSize	sizeof(DIPROPHEADER)
dwObj	If the dwHow member is DIPH_DEVICE, this member must be 0. If the dwHow member is DIPH_BYID, this member must be the identifier for the object whose property setting is to be set or retrieved. If the dwHow member is DIPH_BYOFFSET, this member must be a data format offset for the object whose property setting is to be set or retrieved. For example, if the c_dfDIMouse data format is selected, it must be one of the DIMOFS_* values.Identifier of the object whose property is being retrieved or set. If the dwHow member is DIPH_BYUSAGE, the device must be a Human Interface Device (human interface device). The device object will be identified by the HID usage page and usage values in packed form.
dwHow	Specifies how the dwObj member should be interpreted. See the preceding description of the dwObj member for details.

The range values for devices whose ranges are unrestricted wraparound.



DIPROPDWORD結構體的定義如下：

Used to access DWORD properties.

typedef struct DIPROPDWORD {
    DIPROPHEADER diph;
    DWORD dwData;
} DIPROPDWORD, *LPDIPROPDWORD;

Members

diph

DIPROPHEADER structure.

dwData

Property-specific value being set or retrieved.



DIPROPHEADER的定義如下：

Serves as a header for all property structures.

typedef struct DIPROPHEADER {
    DWORD dwSize;
    DWORD dwHeaderSize;
    DWORD dwObj;
    DWORD dwHow;
} DIPROPHEADER, *LPDIPROPHEADER;

Members

dwSize

Size of the enclosing structure. This member must be initialized before the structure is used.

dwHeaderSize

Size of the DIPROPHEADER structure.

dwObj

Object for which the property is to be accessed. The value set for this member depends on the value specified in the dwHow member.

dwHow

Value that specifies how the dwObj member should be interpreted. This value can be one of the following:

DIPH_DEVICE

The dwObj member must be 0.

DIPH_BYOFFSET

The dwObj member is the offset into the current data format of the object whose property is being accessed.

DIPH_BYUSAGE

The dwObj member is the human interface device usage page and usage values in packed form.

DIPH_BYID

The dwObj member is the object type/instance identifier. This identifier is returned in the dwType member of the DIDEVICEOBJECTINSTANCE structure returned from a previous call to the IDirectInputDevice8::EnumObjects member.



如果有游戲桿被初始化，g_enum_joystick就成了指向新對象的指針，反之如果沒有游戲桿被初始化，它就等于NULL。一旦設備對象被初始化，就能像前面讀取鍵盤和鼠標的信息一樣讀取游戲桿的信息，但是read_joystick函數要使用DIJOYSTATE結構體。

Describes the state of a joystick device. This structure is used with the IDirectInputDevice8::GetDeviceState method.

typedef struct DIJOYSTATE {
    LONG lX;
    LONG lY;
    LONG lZ;
    LONG lRx;
    LONG lRy;
    LONG lRz;
    LONG rglSlider[2];
    DWORD rgdwPOV[4];
    BYTE rgbButtons[32];
} DIJOYSTATE, *LPDIJOYSTATE;

Members

lX

X-axis, usually the left-right movement of a stick.

lY

Y-axis, usually the forward-backward movement of a stick.

lZ

Z-axis, often the throttle control. If the joystick does not have this axis, the value is 0.

lRx

X-axis rotation. If the joystick does not have this axis, the value is 0.

lRy

Y-axis rotation. If the joystick does not have this axis, the value is 0.

lRz

Z-axis rotation (often called the rudder). If the joystick does not have this axis, the value is 0.

rglSlider

Two additional axes, formerly called the u-axis and v-axis, whose semantics depend on the joystick. Use the IDirectInputDevice8::GetObjectInfo method to obtain semantic information about these values.

rgdwPOV

Direction controllers, such as point-of-view hats. The position is indicated in hundredths of a degree clockwise from north (away from the user). The center position is normally reported as - 1; but see Remarks. For indicators that have only five positions, the value for a controller is - 1, 0, 9,000, 18,000, or 27,000.

rgbButtons

Array of buttons. The high-order bit of the byte is set if the corresponding button is down, and clear if the button is up or does not exist.

Remarks

You must prepare the device for joystick-style access by calling the IDirectInputDevice8::SetDataFormat method, passing the c_dfDIJoystick global data format variable.

If an axis is in relative mode, the appropriate member contains the change in position. If it is in absolute mode, the member contains the absolute axis position.

Some drivers report the centered position of the POV indicator as 65,535. Determine whether the indicator is centered as follows:

BOOL POVCentered = (LOWORD(dwPOV) == 0xFFFF);

Note    Under DirectX 7.0, sliders on some joysticks could be assigned to the Z axis, with subsequent code retrieving data from that member. Using DirectX 8.0 and later, those same sliders will be assigned to the rglSlider array. This should be taken into account when porting applications to later versions of DirectX. Make any necessary alterations to ensure that slider data is retrieved from the rglSlider array.

來看看read_joystick的實現：

用于讀取按鍵狀態的宏在這里仍然起作用：

#define JOYSTICK_BUTTON_STATE(x) ((joy_state.rgbButtons[x] &0x80) ? TRUE : FALSE)



完整代碼示例如下：

點擊下載源碼和工程

程序截圖：
