一、Refract & Reflect
Snell定律描述了光線從一個介質傳播到另外一個介質時,入射角、折射角以及介質折射率的關系。通過snell定律,可以根據入射光的方向向量求取折射光的方向向量。

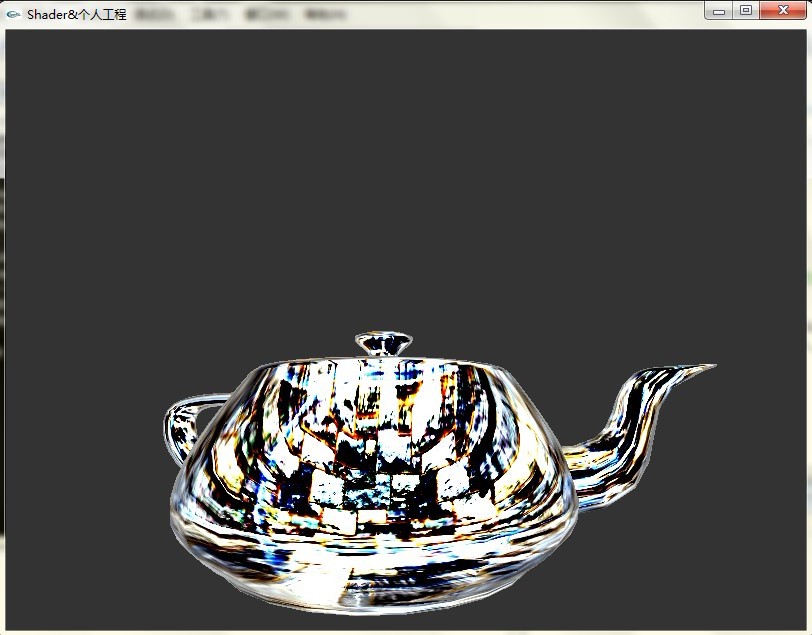

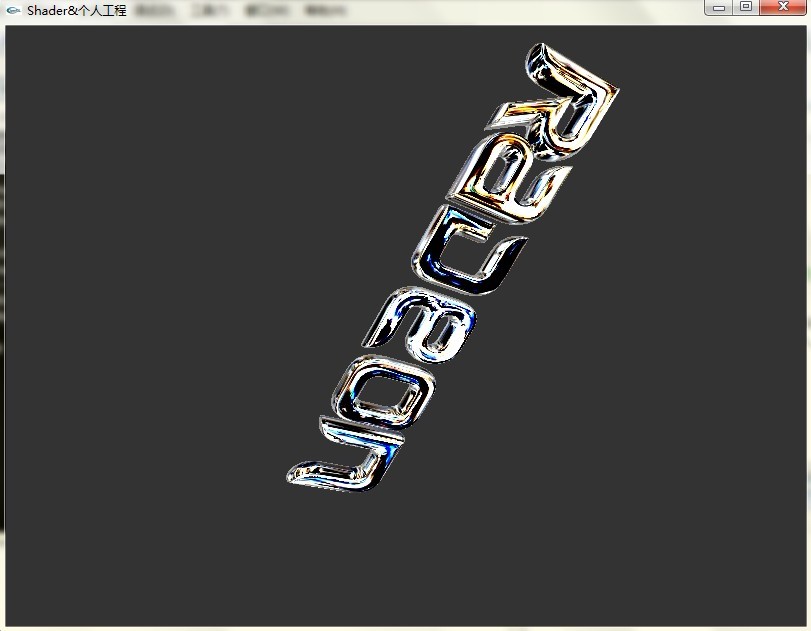

Fresnel定律完善了光的衍射理論,當光線到達材質交界面時,一部分光被反射,另外一部分發生折射,這個現象被稱為Fresnel Effect。菲涅爾現象混合了反射與折射,使得物體更加真實,理論物理中的Fresnel公式很復雜,因而在實時計算機圖形學中,只要在最終效果上滿足人們的視覺感受就可以了。在Cook-Torrance光照模型中計算specular光的rough surface時用到了Fresnel系數。
F = f + (1-f) * (1 - V · H)FresnelPower
其中f入射角為0時的菲涅爾反射系數,V視角向量,H半向量;
color = factor * 反射光顏色 + (1 - factor) * 折射光顏色
Snell中的折射率本質上反映的是光在介質中傳播速度以及折射方向;
Fresnel中折射系系數反映的是光在透明介質表面被折射的光通量的比率;
這些可以模擬水表面的折射與反射現象等等
Vertex shader:
1
const float Eta=0.6;
2
const float FresnelPower=5.0;
3
const float F=((1.0-Eta)*(1.0-Eta))/((1.0+Eta)*(1.0+Eta));
4
varying vec3 Reflect;
5
varying vec3 Refract;
6
varying float Ratio;
7
void main(void)
{
8
9
vec4 ecposition = gl_ModelViewMatrix* gl_Vertex;
10
vec3 ecposition3 = ecposition.xyz/ecposition.w;
11
vec3 i = normalize(ecposition3);
12
vec3 n = normalize(gl_NormalMatrix*gl_Normal);
13
Ratio = F + (1.0-F) * pow(1.0 - dot(i, n),FresnelPower);
14
15
Refract = refract(i,n,Eta);
16
Refract = vec3(gl_TextureMatrix[0] * vec4(Refract,1.0));
17
18
Reflect = reflect(i,n);
19
Reflect = vec3(gl_TextureMatrix[1] * vec4(Reflect,1.0));
20
21
gl_Position = ftransform();
22
}
Frag Shader:
1
varying vec3 Reflect;
2
varying vec3 Refract;
3
varying float Ratio;
4
uniform sampler2d tex;
5
void main(void)
{
6
vec3 refractColor = vec3 (texture2D(tex,Refract));
7
vec3 reflectColor = vec3 (texture2D(tex,Reflect));
8
vec3 Color = mix(refractColor, reflectColor, Ratio);
9
gl_FragColor = vec4( Color,1.0);
10
}
11

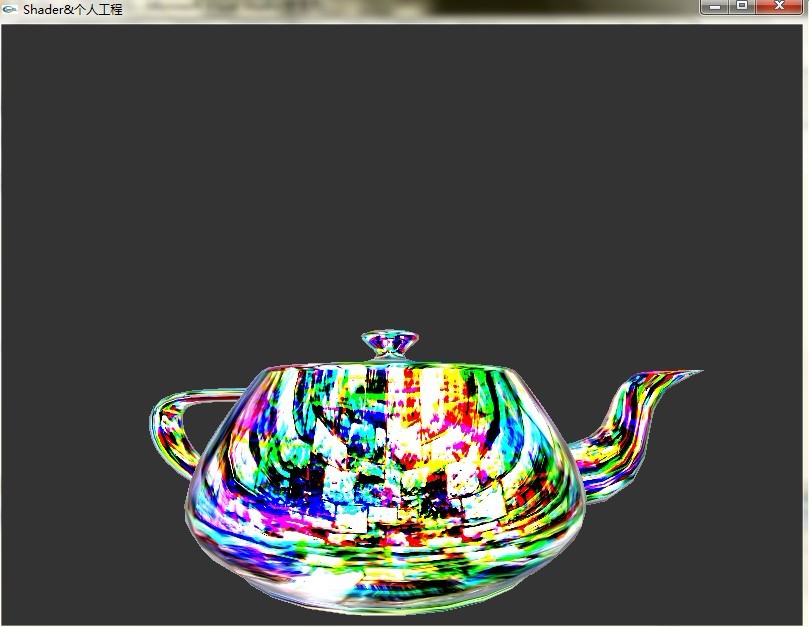

如果要突出某種顏色RGB,產生色散,可以分離折射的rgb值,得到另外一種效果:
1
const float EtaR=0.3;
2
const float EtaG=0.67;
3
const float EtaB=0.9;
4
varying vec3 RefractR;
5
varying vec3 RefractG;
6
varying vec3 RefractB;
7
8
RefractR = refract(i,n,EtaR);
9
RefractR = vec3(gl_TextureMatrix[0] * vec4(RefractR,1.0));
10
11
RefractG = refract(i,n,EtaG);
12
RefractG = vec3(gl_TextureMatrix[0] * vec4(RefractG,1.0));
13
14
RefractB = refract(i,n,EtaB);
15
RefractB = vec3(gl_TextureMatrix[0] * vec4(RefractB,1.0));
1
vec3 refractColor ;
2
refractColor.r= vec3 (texture2D(tex,RefractR));
3
refractColor.g= vec3 (texture2D(tex,RefractG));
4
refractColor.b= vec3 (texture2D(tex,RefractB));

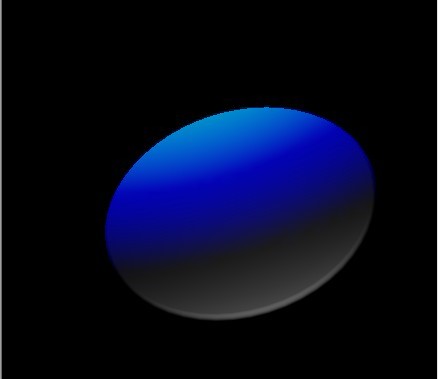

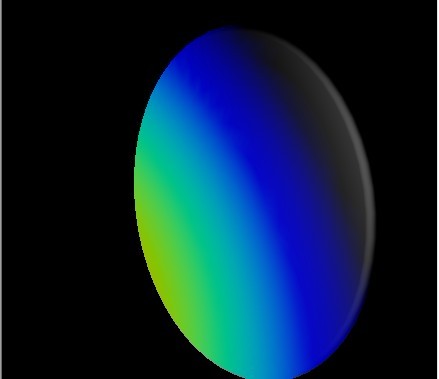

二、Diffraction
GPU Gem1里面有一章講解
光的衍射:光在傳播過程中,遇到透明或者不透明的障礙物,繞過障礙物產生偏離直線傳播的現象稱為光的衍射。
當表面的細節比光的波長小很多時,對于這些小尺寸的細節,例如CD,波效應就不能忽略,
shader一般步驟是:先把可見光的波長轉換到0~1之間,計算半向量在切線的投影來計算u,
原理不是很懂
就這樣吧。。
vertex shader
1
uniform vec3 eyeposition;
2
uniform vec3 lightposition;
3
vec4 HighlightColor=(1.0,1.0,1.0,1.0);
4
varying vec4 Color;
5
attribute vec3 Tangent;
6
vec3 lambda2rgb(float lambda)
{
7
const float ultraviolet =400.0;
8
const float infrared =700.0;
9
//轉換可見光到0~1
10
float a = (lambda - ultraviolet)/(infrared - ultraviolet);
11
const float c = 10.0; //圖的寬度
12
vec3 b = vec3(a) - vec3(0.75,0.5,0.25);
13
return max((1.0 - c*b*b), 0.0);
14
}
15
void main(void)
{
16
vec3 objPosition = vec3 (gl_ModelViewMatrix * gl_Vertex);
17
vec3 Normal = normalize (gl_NormalMatrix * gl_Normal);
18
vec3 LightDir = normalize (lightposition - objPosition);
19
vec3 EyeDir = normalize (eyeposition - objPosition);
20
vec3 HalfVec = normalize (LightDir + EyeDir);
21
22
vec3 T=normalize(gl_NormalMatrix * Tangent);
23
float u = abs(dot(T, HalfVec));
24
25
vec3 diffColor=vec3(0.0);
26
27
const int numspectralorders=3;
28
for(int m=1; m<=numspectralorders;++m)
{
29
float lambda =660 * u / float(m);
30
diffColor += lambda2rgb(lambda);
31
}
32
33
float w = dot(Normal , HalfVec);
34
float e = 2 * u / w;
35
vec3 hilight = exp(-e * e) * HighlightColor.rgb;
36
37
38
const float diffAtten = 0.8;
39
Color = vec4(diffAtten * diffColor + hilight, 1.0);
40
41
gl_Position = ftransform();
42
43
44
} Frag shader
1
varying vec4 Color;
2
void main(void)
3

{
4
gl_FragColor =Color ;
5
}
