Embedding Data Objects and Template Restrictions

Data referencing has one caveat−the template restrictions set in place must allow you to use a reference. That might not make sense at first, but you can't use a data reference without the proper restrictions. An .X file represents an entire hierarchy of data objects, which can only be siblings or children of other objects. Thus, data objects embedded in other objects need the proper restrictions to be referenced or instanced. For example, consider the following three template declarations:

template ClosedTemplate {
  <4C9D055B−C64D−4bfe−A7D9−981F507E45FF>
  DWORD ClosedData;
}

template OpenTemplate {
  <4C9D055B−C64D−4bff−A7D9−981F507E45FF>
  DWORD OpenData;
  [...]
}

template RestrictedTemplate {
  <4C9D055B−C64D−4c00−A7D9−981F507E45FF>
  DWORD RestrictedData;
  [ClosedTemplate]
  [OpenTemplate]
}

They are pretty standard template declarations, except for the lines that contain square brackets. The information inside those square brackets is important. The first template, ClosedTemplate, doesn't have square brackets, so it is considered a closed template. You can only instance and define the ClosedData value inside ClosedTemplate.

The OpenTemplate, however, contains the [] line, which signifies that it is an open template. An open template allows any data object to be embedded in place of the [] line. For example, you can instance OpenTemplate, define the OpenData variable, and then embed an instance of ClosedTemplate within the OpenTemplate.

RestrictedTemplate has two lines of bracket text. Restricting templates only allow data objects of those template types listed; in this case, those templates are ClosedTemplate and OpenTemplate. Attempts to embed any other data object other than the two listed will fail (causing the parse to fail).

Whew−you might have to reread this section a few times to fully understand the ability to embed and restrict templates within other templates. Once you have a firm grasp on embedding and restricting, it's time to move on and learn about DirectX's pre−defined standard templates, which are packaged with the DirectX SDK.

Working with the DirectX Standard Templates

Now that you've worked your way through templates and data objects, you can move up a step and see what you can do with them in your project. If you've taken the time to play around with the DirectX SDK, you'll notice that .X is widely used for containing mesh information. To that end, Microsoft has packaged DirectX with a number of templates, which I call the DirectX standard templates. These templates are used to contain all mesh−related data.

The standard templates are useful because they define almost every aspect of 3D meshes, so take a moment to study them here.

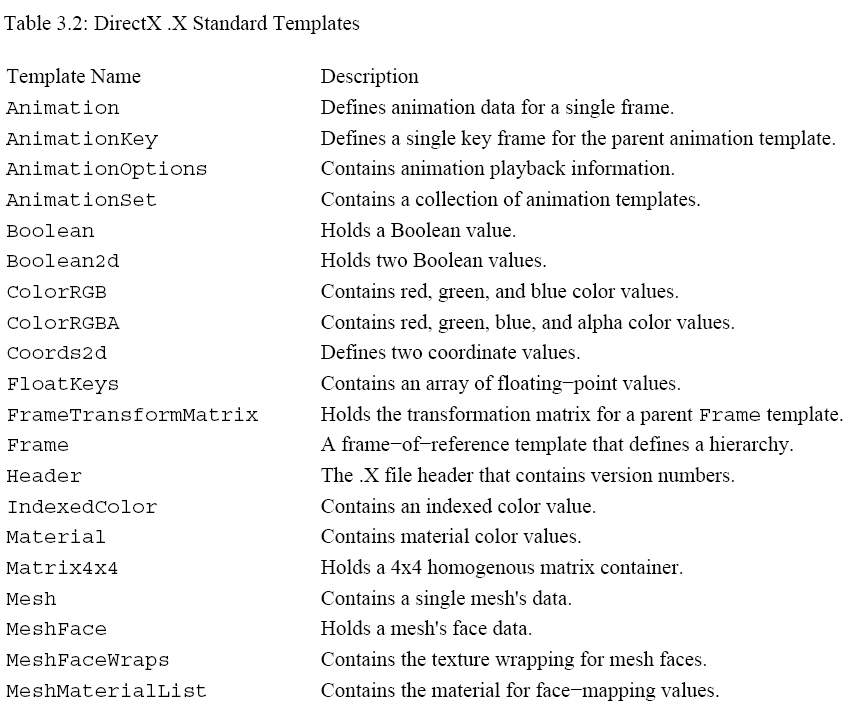

The standard templates, shown in Table 3.2, each have a matching GUID macro that you use to determine which data object is which in your program. These macros are defined (using DEFINE_GUID) inside a special file named rmxfguid.h. The standard templates' GUID macros are easy to remember because you just prefix the template's name with D3DRM_TID. For instance, the Animation template is defined by the macro D3DRM_TIDAnimation.

Animation

Contains animations referencing a previous frame. It should contain one reference to a frame and at least one set of AnimationKey templates. It also can contain an AnimationOptions data object.

template Animation
{
    < 3D82AB4F-62DA-11cf-AB39-0020AF71E433 >
    [...]
}

Where:

• [ ... ] - Any .x file template can be used here. This makes the architecture extensible.

AnimationKey

Defines a set of animation keys. A matrix key is useful for sets of animation data that need to be represented as transformation matrices.

template AnimationKey
{
    < 10DD46A8-775B-11CF-8F52-0040333594A3 >
    DWORD keyType;
    DWORD nKeys;
    array TimedFloatKeys keys[nKeys];
}

Where:

• keyType - Specifies whether the keys are rotation, scale, position, or matrix keys (using the integers 0, 1, 2, or 3, respectively).
• nKeys - Number of keys.
• keys - An array of keys. See TimedFloatKeys.

AnimationOptions

Enables you to set animation options.

template AnimationOptions
{
    < E2BF56C0-840F-11cf-8F52-0040333594A3 >
    DWORD openclosed;
    DWORD positionquality;
}

Where:

• openclosed - Use 0 for a closed animation, or 1 for an open animation. By default, an animation is closed.
• positionquality - Set the position quality for any position keys specified. Use 0 for spline positions or 1 for linear positions.

AnimationSet

Contains one or more Animation objects. Each animation within an animation set has the same time at any given point. Increasing the animation set's time increases the time for all the animations it contains.

template AnimationSet
{
    < 3D82AB50-62DA-11cf-AB39-0020AF71E433 >
    [ Animation < 3D82AB4F-62DA-11cf-AB39-0020AF71E433 > ]
}

Where:

• [ Animation < 3D82AB4F-62DA-11cf-AB39-0020AF71E433 > ] - Optional animation template.

Boolean

Defines a simple Boolean type.

template Boolean
{
    < 537da6a0-ca37-11d0-941c-0080c80cfa7b >
    DWORD truefalse;
}

Where:

• truefalse - True for a Boolean, false otherwise.

Boolean2d

Defines a set of two Boolean values used in the MeshFaceWraps template to define the texture topology of an individual face.

template Boolean2d
{
    < 4885AE63-78E8-11cf-8F52-0040333594A3 >
    Boolean u;
    Boolean v;
}

Where:

• u - Boolean value. See Boolean.
• v - Boolean value. See Boolean.

ColorRGB

Defines the basic RGB color object.

template ColorRGB
{
    < D3E16E81-7835-11cf-8F52-0040333594A3 >
    float red;
    float green;
    float blue;
}

ColorRGBA

Defines a color object with an alpha component. This is used for the face color in the material template definition.

template ColorRGBA
{
    < 35FF44E0-6C7C-11cf-8F52-0040333594A3 >
    float red;
    float green;
    float blue;
    float alpha;
}

Coords2d

Defines a two dimensional vector used to define a mesh's (u, v) texture coordinates.

template Coords2d
{
    < F6F23F44-7686-11cf-8F52-0040333594A3 >
    float u;
    float v;
}

• u - u coordinate value.
• v - v coordinate value.

FloatKeys

Defines an array of floating-point numbers (floats) and the number of floats in that array. This is used for defining sets of animation keys.

template FloatKeys
{
    < 10DD46A9-775B-11cf-8F52-0040333594A3 >
    DWORD nValues;
    array float values[nValues];
}

• nValues - Number of floats.
• values[nValues] - Array of float values.

FrameTransformMatrix

Defines a local transform for a frame (and all its child objects).

template FrameTransformMatrix
{
    < F6F23F41-7686-11cf-8F52-0040333594A3 >
    Matrix4x4 frameMatrix;
}

Where:

• frameMatrix - A Matrix4x4 template.

Frame

Defines a coordinate frame, or "frame of reference." The Frame template is open and can contain any object. The D3DX mesh-loading functions recognize Mesh, FrameTransformMatrix, and Frame template instances as child objects when loading a Frame instance.

template Frame
{
    < 3D82AB46-62DA-11CF-AB39-0020AF71E433 >
    [...]
}

The frame template recognizes child Frame and Mesh nodes inside a frame and can recognize user-defined templates through a callback function.
