本篇是
創建游戲內核（12）的續篇，其中涉及到的網格繪制知識請參閱D3D中網格模型的運用。
使用MESH加載網格
創建MESH類的目的是為了幫助程序員將那些小守護程序加載到一連串易于使用的類中，然后同其他將網格渲染到顯示器上的對象結合起來使用。
點擊下載源碼和工程
首先定義一個結構體S_MESH來封裝ID3DXMesh和ID3DXSkinInfo，以及材質、紋理、變換矩陣等；這個結構體被定位為鏈表結構。
struct S_MESH
{
public:
char* m_name; // name of mesh
ID3DXMesh* m_mesh; // mesh object
ID3DXMesh* m_skin_mesh; // skin mesh object
ID3DXSkinInfo* m_skin_info; // skin mesh information
DWORD m_num_materials; // number of materials in mesh
D3DMATERIAL9* m_materials; // array of materials
IDirect3DTexture9** m_textures; // array of textures
DWORD m_num_bones; // number of bones
D3DXMATRIX* m_matrices; // bone matrices
D3DXMATRIX** m_frame_matrices; // pointers to frame matrices
D3DXVECTOR3 m_min, m_max; // bounding box
float m_radius; // bounding sphere radius
S_MESH* m_next; // next mesh in list
//------------------------------------------------------------------------------------
// Constructor, initialize all member data.
//------------------------------------------------------------------------------------
S_MESH()
{
m_name = NULL;
m_mesh = NULL;
m_skin_mesh = NULL;
m_skin_info = NULL;
m_materials = NULL;
m_textures = NULL;
m_matrices = NULL;
m_frame_matrices = NULL;
m_next = NULL;
m_num_materials = 0;
m_num_bones = 0;
m_radius = 0.0f;
m_min.x = m_min.y = m_min.z = m_max.x = m_max.y = m_max.z = 0.0f;
}
//------------------------------------------------------------------------------------
// Destrcutor, release all resouce.
//------------------------------------------------------------------------------------
~S_MESH()
{
Release_COM(m_mesh);
Release_COM(m_skin_mesh);
Release_COM(m_skin_info);
delete[] m_name;
delete[] m_materials;
if(m_textures)
{
for(DWORD i = 0; i < m_num_materials; i++)
Release_COM(m_textures[i]);
delete[] m_textures;
}
delete[] m_matrices;
delete[] m_frame_matrices;
delete m_next;
}
//------------------------------------------------------------------------------------
// Find mesh object with specified name.
//------------------------------------------------------------------------------------
S_MESH* Find_Mesh(char* name)
{
// return first instance if name is NULL
if(name == NULL)
return this;
// compare names and return if exact match
if(m_name && !strcmp(name, m_name))
return this;
// search next in list
if(m_next != NULL)
{
S_MESH* mesh;
// recursively call
if((mesh = m_next->Find_Mesh(name)) != NULL)
return mesh;
}
return NULL;
}
//------------------------------------------------------------------------------------
// Get number of materials.
//------------------------------------------------------------------------------------
DWORD Get_Num_Materials()
{
return m_num_materials;
}
//------------------------------------------------------------------------------------
// Get material object.
//------------------------------------------------------------------------------------
D3DMATERIAL9* Get_Material(unsigned long index)
{
if(index >= m_num_materials || m_materials == NULL)
return NULL;
return &m_materials[index];
}
//------------------------------------------------------------------------------------
// Get texture object.
//------------------------------------------------------------------------------------
IDirect3DTexture9* Get_Texture(unsigned long index)
{
if(index >= m_num_materials || m_textures == NULL)
return NULL;
return m_textures[index];
}
//------------------------------------------------------------------------------------
// Copy all matrics from frames to local matrix array.
//------------------------------------------------------------------------------------
void Copy_Frame_To_Bone_Matrices()
{
if(m_num_bones != 0 && m_matrices && m_frame_matrices)
{
for(DWORD i = 0; i < m_num_bones; i++)
{
if(m_frame_matrices[i])
// gets the bone offset matrix and multiply it with frame transformed matrix
D3DXMatrixMultiply(&m_matrices[i], m_skin_info->GetBoneOffsetMatrix(i), m_frame_matrices[i]);
else
D3DXMatrixIdentity(&m_matrices[i]);
}
}
// process next in list (recursively call)
if(m_next != NULL)
m_next->Copy_Frame_To_Bone_Matrices();
}
};
接著定義一個結構體S_MESH_LIST來封裝S_MESH，這個結構體也被定義為鏈表結構。
struct S_MESH_LIST
{
public:
S_MESH* m_mesh;
S_MESH_LIST* m_next;
S_MESH_LIST()
{
m_mesh = NULL;
m_next = NULL;
}
~S_MESH_LIST()
{
delete m_next;
}
};
再接著定義一個結構體S_FRAME表示框架層次，它也是鏈表結構，該結構體包含了S_MESH_LIST列表。
struct S_FRAME
{
public:
char* m_name;
S_MESH_LIST* m_mesh_list; // list of meshes attached to this frame
D3DXMATRIX m_mat_combined; // combined trasnformation matrix
D3DXMATRIX m_mat_transformed; // currently transformed matrix
D3DXMATRIX m_mat_original; // original .x File matrix
S_FRAME* m_parent; // parent frame
S_FRAME* m_child; // child frame
S_FRAME* m_sibling; // silbling frame
//------------------------------------------------------------------------------------
// Constructor, initialize member data.
//------------------------------------------------------------------------------------
S_FRAME()
{
m_name = NULL;
m_mesh_list = NULL;
D3DXMatrixIdentity(&m_mat_combined);
D3DXMatrixIdentity(&m_mat_transformed);
D3DXMatrixIdentity(&m_mat_original);
m_parent = m_sibling = m_child = NULL;
}
//------------------------------------------------------------------------------------
// Destructor, release all resource.
//------------------------------------------------------------------------------------
~S_FRAME()
{
delete m_name;
delete m_mesh_list;
delete m_child;
delete m_sibling;
}
//------------------------------------------------------------------------------------
// Find frame with specified name.
//------------------------------------------------------------------------------------
S_FRAME* Find_Frame(char* name)
{
// return this instances if name is NULL
if(name == NULL)
return this;
// compare names and return if exact match
if(m_name && !strcmp(name, m_name))
return this;
S_FRAME* frame;
// search child lists, recursively call.
if(m_child != NULL)
{
if((frame = m_child->Find_Frame(name)) != NULL)
return frame;
}
// search sibling lists, recursively call.
if(m_sibling != NULL)
{
if((frame = m_sibling->Find_Frame(name)) != NULL)
return frame;
}
return NULL;
}
//------------------------------------------------------------------------------------
// Reset transformed matrices to original matrices, recursively call.
//------------------------------------------------------------------------------------
void Reset_Matrices()
{
m_mat_transformed = m_mat_original;
if(m_child != NULL)
m_child->Reset_Matrices();
if(m_sibling != NULL)
m_sibling->Reset_Matrices();
}
//------------------------------------------------------------------------------------
// Add mesh into mesh list.
//------------------------------------------------------------------------------------
void Add_Mesh(S_MESH* mesh)
{
S_MESH_LIST* mesh_list = new S_MESH_LIST();
mesh_list->m_mesh = mesh;
mesh_list->m_next = m_mesh_list;
m_mesh_list = mesh_list;
}
};
在以上已經定義好的結構體基礎上，我們定義一個類MESH來實現網格文件的加載。
class MESH
{
private:
GRAPHICS* _graphics;
long _num_meshes;
S_MESH* _meshes;
long _num_frames;
S_FRAME* _frames;
D3DXVECTOR3 _min, _max;
float _radius;
void _Parse_XFile_Data(ID3DXFileData* xfile_data, S_FRAME* parent_frame, char* texture_path);
void _Map_Frames_To_Bones(S_FRAME* frame);
public:
MESH();
~MESH();
BOOL Is_Loaded();
long Get_Num_Frames();
S_FRAME* Get_Parent_Frame();
S_FRAME* Get_Frame(char* name);
long Get_Num_Meshes();
S_MESH* Get_Parent_Mesh();
S_MESH* Get_Mesh(char* name);
void Get_Bounds(float* min_x, float* min_y, float* min_z, float* max_x, float* max_y, float* max_z, float* radius);
BOOL Load(GRAPHICS* graphics, char* filename, char* texture_path = ".\\");
void Free();
};
這是類MESH的實現：
//-------------------------------------------------------------------
// Constructor, initialize member data.
//-------------------------------------------------------------------
MESH::MESH()
{
_graphics = NULL;
_meshes = NULL;
_frames = NULL;
_num_meshes = 0;
_num_frames = 0;
_radius = 0.0f;
_min.x = _min.y = _min.z = _max.x = _max.y = _max.z = 0.0f;
}
//-------------------------------------------------------------------
// Destructor, release all resource.
//-------------------------------------------------------------------
MESH::~MESH()
{
Free();
}
//-------------------------------------------------------------------
// Release all resource.
//-------------------------------------------------------------------
void MESH::Free()
{
_graphics = NULL;
_num_meshes = 0;
delete _meshes; _meshes = NULL;
_num_frames = 0;
delete _frames; _frames = NULL;
_min.x = _min.y = _min.z = _max.x = _max.y = _max.z = 0.0f;
_radius = 0.0f;
}
//-------------------------------------------------------------------
// Load .x File from specified filename.
//-------------------------------------------------------------------
BOOL MESH::Load(GRAPHICS* graphics, char* filename, char* texture_path)
{
// free prior mesh object data
Free();
// error checking
if((_graphics = graphics) == NULL || filename == NULL)
return FALSE;
ID3DXFile* xfile = NULL;
// create the file object
if(FAILED(D3DXFileCreate(&xfile)))
return FALSE;
// register the templates
if(FAILED(xfile->RegisterTemplates((LPVOID) D3DRM_XTEMPLATES, D3DRM_XTEMPLATE_BYTES)))
{
xfile->Release();
return FALSE;
}
ID3DXFileEnumObject* xfile_enum = NULL;
// create an enumeration object
if(FAILED(xfile->CreateEnumObject((LPVOID) filename, DXFILELOAD_FROMFILE, &xfile_enum)))
{
xfile->Release();
return FALSE;
}
// create a frame
S_FRAME* frame = new S_FRAME();
ID3DXFileData* xfile_data = NULL;
SIZE_T num_child;
// retrieve the number of children in this file data object
xfile_enum->GetChildren(&num_child);
// loop through all objects looking for the frames and meshes
for(SIZE_T i = 0; i < num_child; i++)
{
if(FAILED(xfile_enum->GetChild(i, &xfile_data)))
return FALSE;
// parse xfile data
_Parse_XFile_Data(xfile_data, frame, texture_path);
Release_COM(xfile_data);
}
// release used COM objects
Release_COM(xfile_enum);
Release_COM(xfile);
// see if we should keep the frame as root
if(frame->m_mesh_list != NULL)
{
_frames = frame;
_frames->m_name = new char[7];
strcpy(_frames->m_name, "%ROOT%");
}
else
{
// assign the root frame and release frame
_frames = frame->m_child;
S_FRAME* frame_ptr = _frames;
while(frame_ptr != NULL)
{
frame_ptr->m_parent = NULL;
frame_ptr = frame_ptr->m_sibling;
}
frame->m_child = NULL;
delete frame;
}
// map transformed matrix frames to bones
_Map_Frames_To_Bones(_frames);
S_MESH* mesh;
// calculate bounding box and sphere
if((mesh = _meshes) != NULL)
{
while(mesh != NULL)
{
_min.x = min(_min.x, mesh->m_min.x);
_min.y = min(_min.y, mesh->m_min.y);
_min.z = min(_min.z, mesh->m_min.z);
_max.x = min(_max.x, mesh->m_max.x);
_max.y = min(_max.y, mesh->m_max.y);
_max.z = min(_max.z, mesh->m_max.z);
_radius = max(_radius, mesh->m_radius);
mesh = mesh->m_next;
}
}
return TRUE;
}
//-------------------------------------------------------------------
// Parse specified xfile data, recursive function.
//-------------------------------------------------------------------
void MESH::_Parse_XFile_Data(ID3DXFileData* xfile_data, S_FRAME* parent_frame, char* texture_path)
{
// get the template type
GUID type;
// retrieve the globally unique identifier (GUID) of the object's template
if(FAILED(xfile_data->GetType(&type)))
return;
// get the template name (if any)
DWORD size;
if(FAILED(xfile_data->GetName(NULL, &size)))
return;
char* name = NULL;
if(size != 0)
{
if((name = new char[size]) != NULL)
xfile_data->GetName(name, &size);
}
// give template a default name if none found
if(name == NULL)
{
if((name = new char[9]) == NULL)
return;
strcpy(name, "$NoName$");
}
// set current frame
S_FRAME* current_frame = parent_frame;
// process the templates
if(type == TID_D3DRMFrame) // it's a frame
{
// create a new frame structure
S_FRAME* frame = new S_FRAME();
// store the name
frame->m_name = name;
name = NULL;
// add to parent frame
frame->m_parent = parent_frame;
frame->m_sibling = parent_frame->m_child;
parent_frame->m_child = frame;
// increase frame count
_num_frames++;
// set current frame with parent frame
current_frame = frame;
}
else if(type == TID_D3DRMFrameTransformMatrix) // it's a frame transformation matrix
{
D3DXMATRIX* frame_matrix = NULL;
// get frame transformation matrix
if(FAILED(xfile_data->Lock(&size, (LPCVOID*) &frame_matrix)))
return;
// set original matrix
parent_frame->m_mat_original = *frame_matrix;
xfile_data->Unlock();
}
else if(type == TID_D3DRMMesh) // it's a mesh
{
ID3DXBuffer* material_buffer = NULL;
ID3DXBuffer* adjacency = NULL;
S_MESH* mesh = NULL;
// see if mesh already loaded
if(_meshes == NULL || _meshes->Find_Mesh(name) == NULL)
{
// create a new mesh structure
mesh = new S_MESH();
// store the name
mesh->m_name = name;
name = NULL;
// load mesh data
if(FAILED(D3DXLoadSkinMeshFromXof(xfile_data, 0, _graphics->Get_Device_COM(),
&adjacency, &material_buffer, NULL, &mesh->m_num_materials, &mesh->m_skin_info, &mesh->m_mesh)))
{
delete[] name;
delete mesh;
return;
}
BYTE** ptr;
// calculate the bounding box and sphere
if(SUCCEEDED(mesh->m_mesh->LockVertexBuffer(D3DLOCK_READONLY, (void**) &ptr)))
{
// computes a coordinate-axis oriented bounding box
D3DXComputeBoundingBox((D3DXVECTOR3*) ptr, mesh->m_mesh->GetNumVertices(),
mesh->m_mesh->GetNumBytesPerVertex(), &mesh->m_min, &mesh->m_max);
// computes a bounding sphere for the mesh
D3DXComputeBoundingSphere((D3DXVECTOR3*) ptr, mesh->m_mesh->GetNumVertices(),
mesh->m_mesh->GetNumBytesPerVertex(), &D3DXVECTOR3(0.0f, 0.0f, 0.0f), &mesh->m_radius);
mesh->m_mesh->UnlockVertexBuffer();
}
// store number of bones (if any)
if(mesh->m_skin_info)
mesh->m_num_bones = mesh->m_skin_info->GetNumBones();
// create a matching skinned mesh if bone exist
if(mesh->m_skin_info != NULL && mesh->m_num_bones != 0)
{
// clones a mesh using a flexible vertex format (FVF) code
if(FAILED(mesh->m_mesh->CloneMeshFVF(0, mesh->m_mesh->GetFVF(), _graphics->Get_Device_COM(),
&mesh->m_skin_mesh)))
{
Release_COM(mesh->m_skin_info);
}
else // create an array of matrices to store bone transformations
{
// create the bone matrix array and clear it out
mesh->m_matrices = new D3DXMATRIX[mesh->m_num_bones];
for(DWORD i = 0; i < mesh->m_num_bones; i++)
D3DXMatrixIdentity(&mesh->m_matrices[i]);
// create the frame mapping matrix array and clear out
mesh->m_frame_matrices = new D3DXMATRIX*[mesh->m_num_bones];
for(DWORD i = 0; i < mesh->m_num_bones; i++)
mesh->m_frame_matrices[i] = NULL;
}
}
// load meterials or create a default one if none
if(mesh->m_num_materials == 0)
{
// create a default one
mesh->m_materials = new D3DMATERIAL9[1];
mesh->m_textures = new LPDIRECT3DTEXTURE9[1];
ZeroMemory(mesh->m_materials, sizeof(D3DMATERIAL9));
mesh->m_materials[0].Diffuse.r = 1.0f;
mesh->m_materials[0].Diffuse.g = 1.0f;
mesh->m_materials[0].Diffuse.b = 1.0f;
mesh->m_materials[0].Diffuse.a = 1.0f;
mesh->m_materials[0].Ambient = mesh->m_materials[0].Diffuse;
mesh->m_materials[0].Specular = mesh->m_materials[0].Diffuse;
mesh->m_textures[0] = NULL;
mesh->m_num_materials = 1;
}
else
{
// load the materials
D3DXMATERIAL* materials = (D3DXMATERIAL*) material_buffer->GetBufferPointer();
mesh->m_materials = new D3DMATERIAL9[mesh->m_num_materials];
mesh->m_textures = new LPDIRECT3DTEXTURE9[mesh->m_num_materials];
char path[MAX_PATH];
for(DWORD i = 0; i < mesh->m_num_materials; i++)
{
mesh->m_materials[i] = materials[i].MatD3D;
mesh->m_materials[i].Ambient = mesh->m_materials[i].Diffuse;
// build a texture path and load it
sprintf(path, "%s%s", texture_path, materials[i].pTextureFilename);
if(FAILED(D3DXCreateTextureFromFile(_graphics->Get_Device_COM(), path, &mesh->m_textures[i])))
mesh->m_textures[i] = NULL;
}
}
Release_COM(material_buffer);
Release_COM(adjacency);
// link in mesh
mesh->m_next = _meshes;
_meshes = mesh;
_num_meshes++;
}
else
// Find mesh in list
mesh = _meshes->Find_Mesh(name);
// add mesh to frame
if(mesh != NULL)
parent_frame->Add_Mesh(mesh);
} // end if(type == TID_D3DRMMesh)
else if(type == TID_D3DRMAnimationSet || type == TID_D3DRMAnimation || type == TID_D3DRMAnimationKey)
{
// skip animation sets and animations
delete[] name;
return;
}
// release name buffer
delete[] name;
ID3DXFileData* child_xfile_data = NULL;
SIZE_T num_child;
xfile_data->GetChildren(&num_child);
// scan for embedded templates
for(SIZE_T i = 0; i < num_child; i++)
{
xfile_data->GetChild(i, &child_xfile_data);
// process embedded references
_Parse_XFile_Data(child_xfile_data, current_frame, texture_path);
Release_COM(child_xfile_data);
}
}
//-------------------------------------------------------------------
// Map frame transformation matrix to match bone, recursively call.
//-------------------------------------------------------------------
void MESH::_Map_Frames_To_Bones(S_FRAME *frame)
{
// return if no more frames to map
if(frame == NULL || frame->m_name == NULL)
return;
// scan through meshes looking for bone matches
S_MESH* mesh = _meshes;
while(mesh != NULL)
{
if(mesh->m_skin_info && mesh->m_num_bones && mesh->m_matrices && mesh->m_frame_matrices)
{
for(DWORD i = 0; i < mesh->m_num_bones; i++)
{
if(!strcmp(frame->m_name, mesh->m_skin_info->GetBoneName(i)))
{
mesh->m_frame_matrices[i] = &frame->m_mat_combined;
break;
}
}
}
mesh = mesh->m_next;
}
// scan through child frames
_Map_Frames_To_Bones(frame->m_child);
// scan throuogh sibling frames
_Map_Frames_To_Bones(frame->m_sibling);
}
//-------------------------------------------------------------------
// Judge whether the mesh has been loaded successfully.
//-------------------------------------------------------------------
BOOL MESH::Is_Loaded()
{
return (_meshes != NULL && _frames != NULL);
}
//-------------------------------------------------------------------
// Get number of frame.
//-------------------------------------------------------------------
long MESH::Get_Num_Frames()
{
return _num_frames;
}
//-------------------------------------------------------------------
// Get root frame.
//-------------------------------------------------------------------
S_FRAME* MESH::Get_Parent_Frame()
{
return _frames;
}
//-------------------------------------------------------------------
// Find frame with specified name.
//-------------------------------------------------------------------
S_FRAME* MESH::Get_Frame(char *name)
{
if(_frames == NULL)
return NULL;
return _frames->Find_Frame(name);
}
//-------------------------------------------------------------------
// Get number of mesh.
//-------------------------------------------------------------------
long MESH::Get_Num_Meshes()
{
return _num_meshes;
}
//-------------------------------------------------------------------
// Get root mesh.
//-------------------------------------------------------------------
S_MESH* MESH::Get_Mesh(char *name)
{
if(_meshes == NULL)
return NULL;
return _meshes->Find_Mesh(name);
}
//-------------------------------------------------------------------
// Get bound box coordiante and radius.
//-------------------------------------------------------------------
void MESH::Get_Bounds(float *min_x, float *min_y, float *min_z, float *max_x, float *max_y, float *max_z, float *radius)
{
if(min_x != NULL) *min_x = _min.x;
if(min_y != NULL) *min_y = _min.y;
if(min_z != NULL) *min_z = _min.z;
if(max_x != NULL) *max_x = _max.x;
if(max_y != NULL) *max_y = _max.y;
if(max_z != NULL) *max_z = _max.z;
if(radius != NULL) *radius = _radius;
}
接著我們編寫一段測試代碼來測試MESH類：
/*****************************************************************************
PURPOSE:
Test for class MESH.
*****************************************************************************/
#include "Core_Global.h"
#pragma warning(disable : 4996)
//===========================================================================
// Defines class APP which public inherits from class APPLICATION.
//===========================================================================
class APP : public APPLICATION
{
private:
GRAPHICS _graphics;
MESH _mesh;
BOOL _Draw_Mesh(S_FRAME* frame);
public:
BOOL Init();
BOOL Shutdown();
BOOL Frame();
};
//-----------------------------------------------------------------------------
// Initialize graphics, set display mode, set vertex buffer, load texture file.
//-----------------------------------------------------------------------------
BOOL APP::Init()
{
D3DXMATRIX mat_view;
// initialize graphics
if (! _graphics.Init())
return FALSE;
// set display mode for graphics
if(! _graphics.Set_Mode(Get_Hwnd(), TRUE, FALSE, 400, 400, 16))
return FALSE;
// disable D3D lighting
_graphics.Enable_Lighting(FALSE);
// set perspective projection transform matrix.
_graphics.Set_Perspective(D3DX_PI/4.0f, 1.33333f, 1.0f, 1000.0f);
// create and set the view matrix
D3DXMatrixLookAtLH(&mat_view,
&D3DXVECTOR3(0.0, 50.0, -150.0),
&D3DXVECTOR3(0.0, 50.0, 0.0),
&D3DXVECTOR3(0.0, 1.0, 0.0));
_graphics.Get_Device_COM()->SetTransform(D3DTS_VIEW, &mat_view);
// load mesh
if(! _mesh.Load(&_graphics, "warrior.x"))
return FALSE;
return TRUE;
}
//-----------------------------------------------------------------------------
// Release all d3d resource.
//-----------------------------------------------------------------------------
BOOL APP::Shutdown()
{
return TRUE;
}
//-----------------------------------------------------------------------------
// Render a frame.
//-----------------------------------------------------------------------------
BOOL APP::Frame()
{
D3DXMATRIX mat_world;
// clear display with specified color
_graphics.Clear_Display(D3DCOLOR_RGBA(0, 0, 0, 255));
// begin scene
if(_graphics.Begin_Scene())
{
// create and set the world transformation matrix
// rotate object along z-axis
D3DXMatrixRotationY(&mat_world, (float) (timeGetTime() / 1000.0));
_graphics.Get_Device_COM()->SetTransform(D3DTS_WORLD, &mat_world);
// get root frame
S_FRAME* root_frame = _mesh.Get_Parent_Frame();
// draw mesh
_Draw_Mesh(root_frame);
// end the scene
_graphics.End_Scene();
}
// display video buffer
_graphics.Display();
return TRUE;
}
//-----------------------------------------------------------------------------
// Draw mesh, call recursively.
//-----------------------------------------------------------------------------
BOOL APP::_Draw_Mesh(S_FRAME* frame)
{
D3DXMATRIX* matrices = NULL;
ID3DXMesh* mesh_to_draw;
S_MESH* mesh;
// return if no frame
if(frame == NULL)
return FALSE;
if(frame->m_mesh_list != NULL)
{
// draw meshes if any in frame
if((mesh = frame->m_mesh_list->m_mesh) != NULL)
{
// setup pointer to mesh to draw
mesh_to_draw = mesh->m_mesh;
// generate mesh from skinned mesh to draw with
if(mesh->m_skin_mesh != NULL && mesh->m_skin_info != NULL)
{
DWORD num_bones = mesh->m_skin_info->GetNumBones();
// allocate an array of matrices to orient bones
matrices = new D3DXMATRIX[num_bones];
// set all bones orientation to identity
for(DWORD i = 0; i < num_bones; i++)
D3DXMatrixIdentity(&matrices[i]);
// lock source and destination vertex buffers
void* source = NULL;
void* dest = NULL;
// locks a vertex buffer and obtains a pointer to the vertex buffer memory
mesh->m_mesh->LockVertexBuffer(0, &source);
mesh->m_skin_mesh->LockVertexBuffer(0, &dest);
// Update skinned mesh, applies software skinning to the target vertices based on the current matrices.
mesh->m_skin_info->UpdateSkinnedMesh(matrices, NULL, source, dest);
// unlock buffers
mesh->m_mesh->UnlockVertexBuffer();
mesh->m_skin_mesh->UnlockVertexBuffer();
// pointer to skin mesh to draw
mesh_to_draw = mesh->m_skin_mesh;
}
// render the mesh
for(DWORD i = 0; i < mesh->Get_Num_Materials(); i++)
{
// set the materials properties for the device
_graphics.Get_Device_COM()->SetMaterial(&mesh->m_materials[i]);
// assign a texture to a stage for a device
_graphics.Get_Device_COM()->SetTexture(0, mesh->m_textures[i]);
// draw a subset of a mesh
mesh_to_draw->DrawSubset(i);
}
// free array of matrices
delete[] matrices;
matrices = NULL;
}
}
// draw child frames, recursively call.
_Draw_Mesh(frame->m_child);
return TRUE;
}
int PASCAL WinMain(HINSTANCE inst, HINSTANCE, LPSTR cmd_line, int cmd_show)
{
APP app;
return app.Run();
}

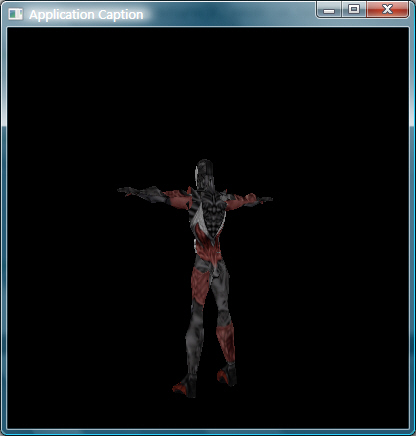

運行截圖:
