(金慶的專欄)

Recast Demo 輸入需要 geomset.txt 文件來指定區域類型。

以ObjExporter.cs為基礎，編寫Unity3d地圖導出工具，同時導出obj文件和geomset.txt.

geomset.txt 示例

# Obj file.
f scene_level_0101.unity_56.obj

# Convex volumes.
# v nVertex area hmin hmax
# Area:
#   0: Default
#   1: Not Walkable
#   2: Jump
#   3: Enemy

# wall
v 4 1 -19.10179 6.521788
-77.54077 -19.10179 60.79453
-74.40015 6.521788 57.64596
-73.83923 6.521788 58.20547
-76.97985 -19.10179 61.35404

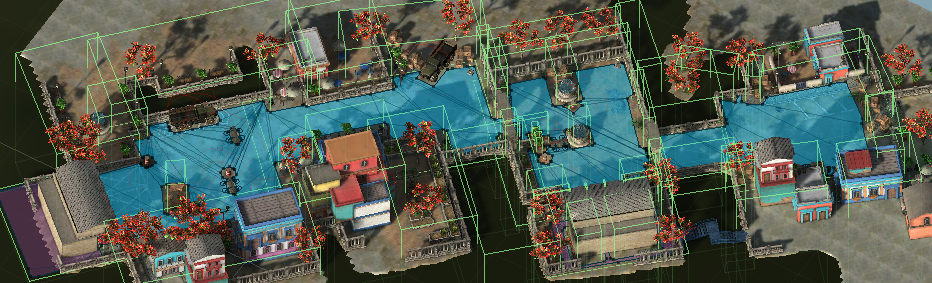

場景：

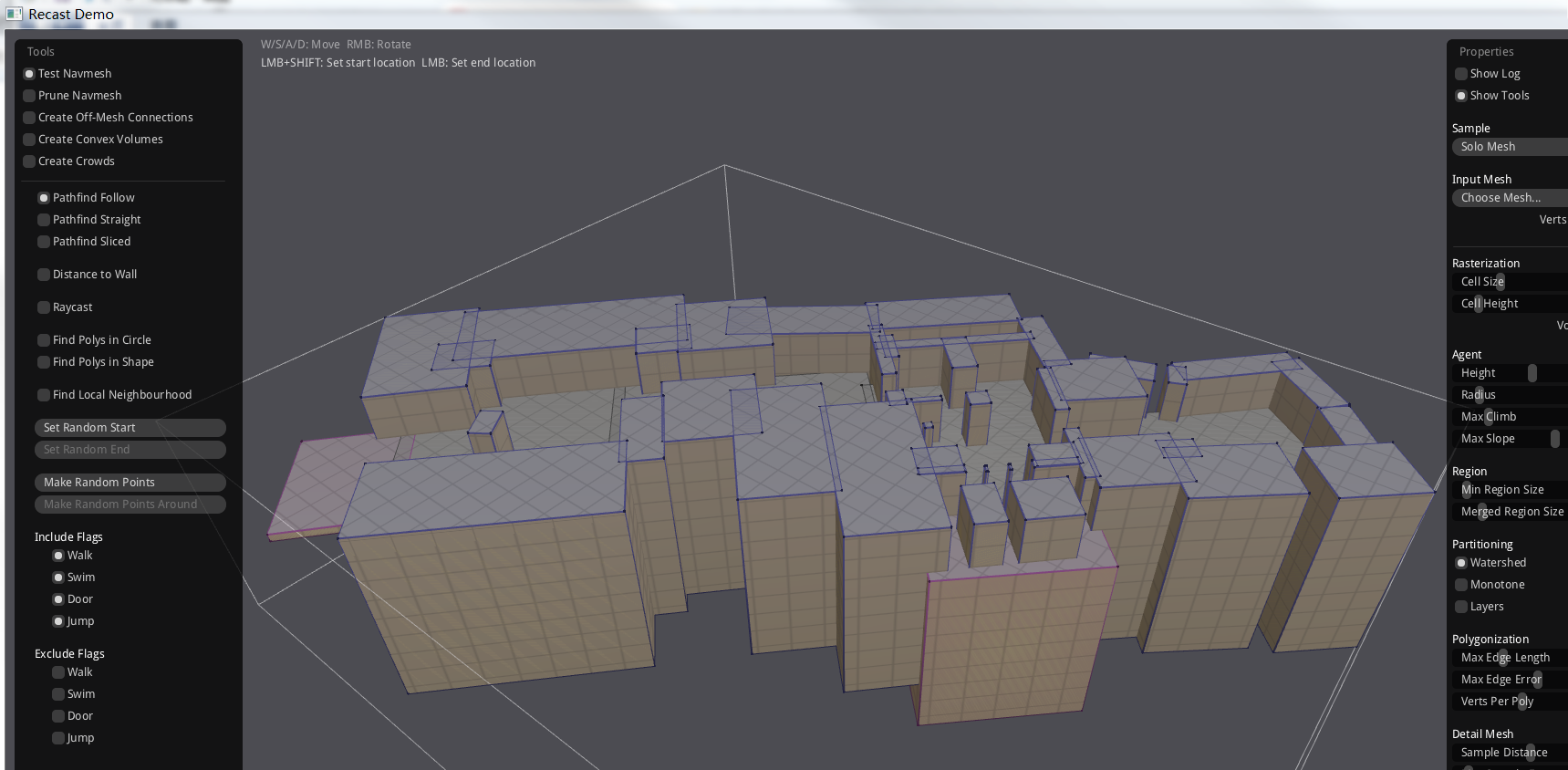

Recast 加載：

代碼：

/*
Based on ObjExporter.cs:
http://wiki.unity3d.com/index.php?title=ObjExporter
This "wrapper" lets you export map to .OBJ and geomset.txt directly from the editor menu.
Obj mesh file and geomset.txt are used to generate nav mesh for server in Recast.

This should be put in your "Editor"-folder.
Use menu "Custom->Export map".
Exported models are put in a folder called
"ExportedMap" in the root of your Unity-project.
*/
/* 輸出 obj 文件是mesh保存文件, geomset.txt 是RecastDemo工具的輸入文件,
* 將這2個文件復制到 RecastDeme 執行目錄, 按數字 0 加載.
*/
using UnityEngine;
using UnityEditor;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Text;
using System;

public class EditorMapExporter : ScriptableObject
{
    private static int vertexOffset = 0;
    private static string targetFolder = "ExportedMap";
    private static StringBuilder sbLog = new StringBuilder ();
    private static string geomsetFileName = "geomset.txt";

    private static void FlushLog ()
    {
        if (!CreateTargetFolder ())
            return;

        using (StreamWriter sw = new StreamWriter(targetFolder + "/" + "MapExporter.log", true)) {
            sw.Write (sbLog.ToString ());
        }
        sbLog = new StringBuilder ();
    }

    private static string MeshToString (MeshFilter mf)
    {
        Mesh m = mf.sharedMesh;

        StringBuilder sb = new StringBuilder ();

        sb.Append ("g ").Append (mf.name).Append ("\n");
        sb.Append ("\n");
        foreach (Vector3 lv in m.vertices) {
            Vector3 wv = mf.transform.TransformPoint (lv);

            //This is sort of ugly - inverting x-component since we're in
            //a different coordinate system than "everyone" is "used to".
            sb.Append (string.Format ("v {0} {1} {2}\n", -wv.x, wv.y, wv.z));
        }
        sb.Append ("\n");

        for (int material=0; material < m.subMeshCount; material ++) {
            int[] triangles = m.GetTriangles (material);
            for (int i=0; i<triangles.Length; i+=3) {
                //Because we inverted the x-component, we also needed to alter the triangle winding.
                sb.Append (string.Format ("f {1} {0} {2}\n",
                    triangles [i] + 1 + vertexOffset, triangles [i + 1] + 1 + vertexOffset, triangles [i + 2] + 1 + vertexOffset));
            }
        }
        sb.Append ("\n");

        vertexOffset += m.vertices.Length;

        return sb.ToString ();
    }

    private static void Clear ()
    {
        vertexOffset = 0;
    }

    private static void MeshesToFile (MeshFilter[] mf, string filename)
    {
        Clear ();
        string folder = targetFolder;
        using (StreamWriter sw = new StreamWriter(folder + "/" + filename)) {
            for (int i = 0; i < mf.Length; i++) {
                sw.Write (MeshToString (mf [i]));
            }
        }
        EditorUtility.DisplayDialog ("Map exported", "Exported " + mf.Length + " objects to " + filename, "OK");
    }

    private static bool CreateTargetFolder ()
    {
        try {
            System.IO.Directory.CreateDirectory (targetFolder);
        } catch {
            EditorUtility.DisplayDialog ("Error!", "Failed to create target folder!", "OK");
            return false;
        }

        return true;
    }

    // 獲取場景中的所有游戲對象, 選出所有NavigationStatic對象.
    // 靜態光源等無MeshFilter的將被忽略.
    private static GameObject[] GetNavStaticObjects ()
    {
        sbLog.Append ("Get navigation static objects:\n");
        ArrayList navStaticObjList = new ArrayList ();
        GameObject [] gos = (GameObject[])FindObjectsOfType (typeof(GameObject));
        foreach (GameObject go  in gos) {
            // 暫無OffMeshLinkGeneration
            if (!GameObjectUtility.AreStaticEditorFlagsSet (go, StaticEditorFlags.NavigationStatic))
                continue;
            Component[] meshfilter = go.transform.GetComponents (typeof(MeshFilter));
            if (0 == meshfilter.Length)
                continue;

            navStaticObjList.Add (go);
            sbLog.AppendFormat ("Name: {0}, MeshFilters: {1}\n", go.name, meshfilter.Length);
        }

        return (GameObject[])navStaticObjList.ToArray (typeof(GameObject));
    }

    // 獲取場景中的所有游戲對象, 選出所有NavigationStatic對象.
    // 靜態光源等無MeshFilter的將被忽略.
    private static MeshFilter[] GetMeshFilters (GameObject[] gos)
    {
        ArrayList mfList = new ArrayList ();
        for (int i = 0; i < gos.Length; i++) {
            GameObject go = gos [i];
            Component[] meshfilter = go.transform.GetComponents (typeof(MeshFilter));
            for (int m = 0; m < meshfilter.Length; m++) {
                mfList.Add (meshfilter [m]);
            }
        }
        return (MeshFilter[])mfList.ToArray (typeof(MeshFilter));
    }

    [MenuItem ("Custom/Export Map v4")]
    static void ExportWholeSelectionToSingle ()
    {
        if (!CreateTargetFolder ())
            return;

        sbLog.AppendFormat ("NavMeshLayerNames:\n");
        string[] nmLayerNames = GameObjectUtility.GetNavMeshLayerNames ();
        for (int i = 0; i < nmLayerNames.Length; i++) {
            sbLog.AppendFormat ("{0}: {1}\n",
                                nmLayerNames[i],
                                GameObjectUtility.GetNavMeshLayerFromName(nmLayerNames[i]));
        }
        sbLog.Append ("\n");

        //獲取場景中的所有游戲對象, 選出所有NavigationStatic對象
        GameObject[] gos = GetNavStaticObjects ();
        MeshFilter[] mf = GetMeshFilters (gos);
        string objFileName = GetObjSaveFileName (mf.Length);
        MeshesToFile (mf, objFileName);
        SaveGeomsetFile (mf, objFileName);

        FlushLog ();
    }

    private static string GetObjSaveFileName(int exportedObjects)
    {
        string filename = EditorApplication.currentScene + "_" + exportedObjects;
        int stripIndex = filename.LastIndexOf ('/');//FIXME: Should be Path.PathSeparator
        if (stripIndex >= 0)
            filename = filename.Substring (stripIndex + 1).Trim ();
        return filename + ".obj";
    }

    private static void SaveGeomsetFile(MeshFilter[] mf, string objFileName)
    {
        using (StreamWriter sw = new StreamWriter(targetFolder + "/" + geomsetFileName)) {
            sw.Write ("# Obj file.\n");
            sw.Write ("f " + objFileName + "\n\n");
            // 暫無 Offmesh connector
            // Convex volumes
            ConvexVolumes cvs = new ConvexVolumes(mf);
            sw.Write (cvs.ToString ());
        }
    }

    class ConvexVolumes
    {
        private ArrayList cvList = new ArrayList ();

        public ConvexVolumes(MeshFilter[] mf)
        {
            for (int i = 0; i < mf.Length; i++) {
                cvList.Add (new ConvexVolume (mf[i]));
            }
        }

        public string ToString()
        {
            StringBuilder sb = new StringBuilder ();
            sb.Append ("# Convex volumes.\n");
            sb.Append ("# v nVertex area hmin hmax\n");
            sb.Append ("# Area:\n");
            string[] nmLayerNames = GameObjectUtility.GetNavMeshLayerNames ();
            for (int i = 0; i < nmLayerNames.Length; i++) {
                sb.AppendFormat ("#\t{0}: {1}\n",
                                 GameObjectUtility.GetNavMeshLayerFromName(nmLayerNames[i]),
                                 nmLayerNames[i]);
            }
            sb.Append ("\n");

            foreach(ConvexVolume cv in cvList)
            {
                sb.Append(cv.ToString() + "\n");
            }
            return sb.ToString ();
        }
    }

    class ConvexVolume
    {
        private string name;
        private int areaType;
        private float minh;
        private float maxh;
        private ArrayList vertList;

        public ConvexVolume(MeshFilter mf)
        {
            name = mf.gameObject.name;
            areaType = GameObjectUtility.GetNavMeshLayer (mf.gameObject);
            sbLog.AppendFormat ("ConvexVolume: name = {0}, area = {1}\n",
                                mf.gameObject.name, areaType);
            Vector3[] allVertices = GetAllVertices (mf);
            GetHeight (allVertices);
            ConvexHull (allVertices);
        }

        public string ToString()
        {
            StringBuilder sb = new StringBuilder ();
            sb.AppendFormat ("# {0}\n", name);
            sb.AppendFormat ("v {0} {1} {2} {3}\n", vertList.Count, areaType, minh, maxh);
            foreach (Vector3 v in vertList) {
                sb.AppendFormat ("{0} {1} {2}\n", v.x, v.y, v.z);
            }
            return sb.ToString ();
        }

        private Vector3[] GetAllVertices(MeshFilter mf)
        {
            Mesh m = mf.sharedMesh;
            ArrayList vertList = new ArrayList ();

            foreach (Vector3 lv in m.vertices) {
                Vector3 wv = mf.transform.TransformPoint (lv);
                //This is sort of ugly - inverting x-component
                Vector3 wv2 = new Vector3(-wv.x, wv.y, wv.z);
                vertList.Add (wv2);
            }
            return (Vector3[])vertList.ToArray (typeof(Vector3));
        }

        private void ConvexHull(Vector3[] v)
        {
            vertList = new ArrayList();

            // Find lower-leftmost point.
            int org_hull = 0;
            for (int h = 1; h < v.Length; ++h)
                if (CompPoint(v[h], v[org_hull]))
                    org_hull = h;

            // Gift wrap hull.
            int endpt = 0;
            int hull = org_hull;
            int count = 0;
            do
            {
                count++;
                if (count > 999999) {
                    EditorUtility.DisplayDialog ("Convex Hull Error", "Something is wrong!!!", "OK");
                    break;
                }

                vertList.Add (v[hull]);
                // sbLog.AppendFormat ("Got hull {0} : {1}\n", hull, v[hull].ToString ());
                endpt = 0;
                for (int j = 1; j < v.Length; ++j)
                    if (endpt == hull || IsLeft (v[hull], v[endpt], v[j]))
                        endpt = j;
                hull = endpt;
            }
            while (endpt != org_hull && count <= 24);
            FlushLog ();
        }

        // Returns true if 'c' is left of line 'a'-'b'.
        private bool IsLeft(Vector3 a, Vector3 b, Vector3 c)
        {
            float u1 = b.x - a.x;
            float v1 = b.z - a.z;
            float u2 = c.x - a.x;
            float v2 = c.z - a.z;
            return u1 * v2 - v1 * u2 < 0;
        }

        // Returns true if 'a' is more lower-left than 'b'.
        private bool CompPoint(Vector3 a, Vector3 b)
        {
            if (a.x < b.x) return true;
            if (a.x > b.x) return false;
            if (a.z < b.z) return true;
            if (a.z > b.z) return false;
            return false;
        }

        private void GetHeight(Vector3[] vertices)
        {
            minh = float.MaxValue;
            maxh = float.MinValue;
            foreach (Vector3 v in vertices) {
                if (minh > v.y)
                    minh = v.y;
                if (maxh < v.y)
                    maxh = v.y;
            }
        }
    }
}

posted on 2016-01-12 11:28 金慶閱讀(534) 評論(0) 編輯收藏引用所屬分類: 2. 網游開發
