LeakDiag是微軟一款檢測memory leak的工具，使用比較簡單
首先去下載一個
ftp://ftp.microsoft.com/PSS/Tools/Developer%20Support%20Tools/LeakDiag/安裝好，默認是在c:\leakdiag
然后寫一個測試程序來測試
#include <stdio.h>
#include <windows.h>
int main()
{
while(1)
{
char *c = new char[10];
printf("%s",c);
Sleep(1000);
}
return 0;
}

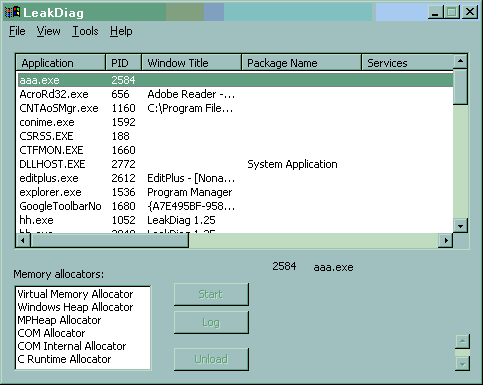

在LeakDiag中選擇aaa.exe
然后選擇Windows Heap Allocator來跟蹤heap的使用，按start開始，等一會按log，然后再stop
會在c:\leakdiag\Logs下面生成一個log
關鍵的部分是
<LEAKS ver="1.25.28.2201">
<STACK numallocs="05" size="048" totalsize="0240">
<STACKSTATS>
<SIZESTAT size="048" numallocs="05"/>
<HEAPSTAT handle="340000" numallocs="05"/>
</STACKSTATS>
<FRAME num="0" dll="aaa.exe" function="" filename="" line="" addr="0x407a72" offset="0x00007A72" />
<FRAME num="1" dll="aaa.exe" function="" filename="" line="" addr="0x402ff2" offset="0x00002FF2" />
<FRAME num="2" dll="aaa.exe" function="" filename="" line="" addr="0x402df9" offset="0x00002DF9" />
<FRAME num="3" dll="aaa.exe" function="" filename="" line="" addr="0x402dd6" offset="0x00002DD6" />
<FRAME num="4" dll="aaa.exe" function="" filename="" line="" addr="0x40112f" offset="0x0000112F" />
<FRAME num="5" dll="aaa.exe" function="" filename="" line="" addr="0x401038" offset="0x00001038" />
<FRAME num="6" dll="aaa.exe" function="" filename="" line="" addr="0x401269" offset="0x00001269" />
<FRAME num="7" dll="KERNEL32.dll" function ="GetSortTablesFileInfo" offset="0xC" filename="" line="" addr="0x7C5989D5" />
<STACKID>00524008</STACKID>
</STACK>
</LEAKS>
其中numallocs是分配的次數,size是每次分配的大小，frame則是leak的時候的call stack
這里的stack只顯示了binary,是因為symbol沒有配好
把對應的pdb文件路徑加到[Tools]-[Option]-Symbol search path，就能得到
<LEAKS ver="1.25.28.2201">
<STACK numallocs="06" size="048" totalsize="0288">
<STACKSTATS>
<SIZESTAT size="048" numallocs="06"/>
<HEAPSTAT handle="340000" numallocs="06"/>
</STACKSTATS>
<FRAME num="0" dll="aaa.exe" function ="_heap_alloc_base" offset="0xC2" filename="malloc.c" line="200" addr="0x407A72" />
<FRAME num="1" dll="aaa.exe" function ="_heap_alloc_dbg" offset="0x1A2" filename="dbgheap.c" line="378" addr="0x402FF2" />
<FRAME num="2" dll="aaa.exe" function ="_nh_malloc_dbg" offset="0x19" filename="dbgheap.c" line="248" addr="0x402DF9" />
<FRAME num="3" dll="aaa.exe" function ="_nh_malloc" offset="0x16" filename="dbgheap.c" line="197" addr="0x402DD6" />
<FRAME num="4" dll="aaa.exe" function ="operator new" offset="0xF" filename="new.cpp" line="24" addr="0x40112F" />
<FRAME num="5" dll="aaa.exe" function ="main" offset="0x28" filename="D:\Test\aaa\test.cpp" line="8" addr="0x401038" />
<FRAME num="6" dll="aaa.exe" function ="mainCRTStartup" offset="0xE9" filename="crt0.c" line="206" addr="0x401269" />
<STACKID>00524008</STACKID>
</STACK>
</LEAKS>
由test.cpp line 8引起的memory leak.
BTW: 據說有一個tool叫LDParser來分析leakdiag生成的log,哪位大俠有，希望提供一下，謝謝！
