來自于《大話設(shè)計模式》
裝飾模式（Decorator）：動態(tài)地給一個對象添加額外的職責(zé)，就增加的功能來說，裝飾模式比生成子類更為靈活。

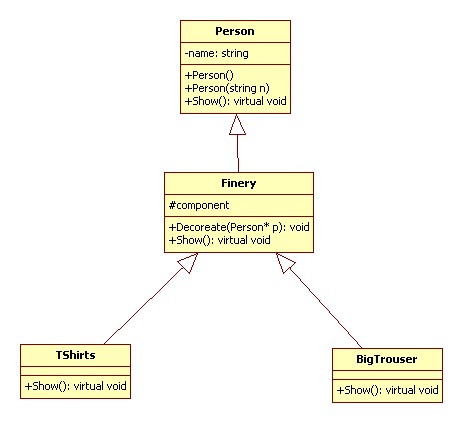

UML 圖：
代碼實現(xiàn) C++：
1 #include <iostream>
2 #include <string>
3 using namespace std;
4
5 class Person
6 {
7 private:
8 string name;
9 public:
10 Person() {}
11 Person(string n): name(n) {}
12 virtual void Show()
13 {
14 cout << "裝飾的 " << name << endl;
15 }
16 };
17
18 class Finery: public Person
19 {
20 protected:
21 Person* component;
22 public:
23 void Decorate(Person* p)
24 {
25 component = p;
26 }
27 virtual void Show()
28 {
29 if (component != 0)
30 {
31 component->Show();
32 }
33 }
34 };
35
36 class TShirts: public Finery
37 {
38 public:
39 virtual void Show()
40 {
41 cout << "大 T 恤 ";
42 Finery::Show();
43 }
44 };
45
46 class BigTrouser: public Finery
47 {
48 public:
49 virtual void Show()
50 {
51 cout << "垮褲 ";
52 Finery::Show();
53 }
54 };
55
56 int main()
57 {
58 Person* p = new Person("Mark");
59 p->Show();
60
61 TShirts* t = new TShirts;
62 t->Decorate(p);
63 t->Show();
64
65 BigTrouser* b = new BigTrouser;
66 b->Decorate(t);
67 b->Show();
68
69 delete p;
70 delete t;
71 delete b;
72 }
